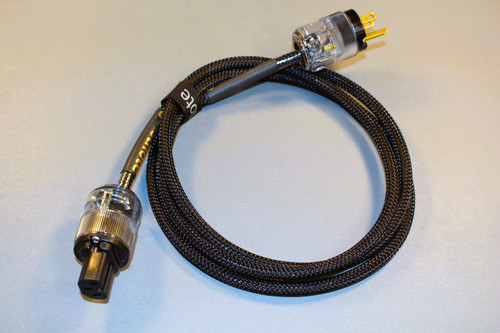

Fire rated and shielded power cable for mains power to your Hi-End Audio Gear. This cable ensures best transport of needed energy to our device but due to effective shielding, this is protecting your signal cables nearby even better from hum and RF noise generated by the 50Hz signal going thru the power supply cable.
Harmonisierter Produktecode: 2YSL(ST)Y3G2.5
Flameretarded FRNC Jacket (IEC 60332-3-24) and EN50266-2-4
Halogen Free IEC 60754-2 and DIN EN 50267-2-21
FRNC = Flame Retardant Non Corrosive and halogen free
.png)
Construction: |
||
| 1 = Jacket: | LSOH, (HM 2 - DIN VDE 0207 part 24) FRNC Ø 9.90 mm max., ultrablue RAL5013 |
|
| 2 = Shield: | Aluminium polyester foil | |
| 3 = Drain wire: | 19x0,18mmØ SnCu (Ground) tinned copper | |
| 4 = Insulation 3x: | LSOH – HI 2, 0.70mm thickness. Nominal Diameter 2.95 mm, Color code: Blue-Brown-Yellow/Green |
|
| 5 = Conductor: | 45x0,25mmØ Cu 2,20mm² bare copper stranded 45x30AWG (14AWG) | |
Technical datas: |
||
| Conductor resistance: | < 8.20 Ohm/km | |
| Rating Voltage: |
300/500V |
|
| Test Voltage: | 2000 Veff | |
| Temperature range: | -30° to +70° C | |
| Maximum Watts load: | @ current 15.0 Ampere/Line | < 1650 Watt |
